Mini Electric Slip Ring 6 Channels High Speed Capsule Slip Ring

Name: Mini Electric Slip Ring 6 Channels High Speed Capsule Slip Ring
Brand: SPR-ing
Price: 200 USD

Best Mini Electric Slip Ring 6 Channels High Speed Capsule Slip Ring wholesale

Brand Name : SPR-ing

Model Number : SP018006

Place of Origin : Shenzhen

MOQ : 1

Price : 200-800USD

Payment Terms : L/C,T/T

Supply Ability : 1000/month

Delivery Time : 1 week

Packaging Details : Carton

Rotating Speed : 0-3000 rpm

Design loop : 6

Dynamic Resistance Change : ≤10mΩ

Working Temperature : -45℃ ~ 60℃

Maximum Current : 1A

Shell Material : Stainless steel+alluminum alloy

Contact Now

Mini Electric Slip Ring - 6 Channels High Speed Capsule

SP018006 mini electric slip ring designed for precision robotics and UAV systems. This compact slip ring supports continuous 360° rotation while transmitting 6 circuits at 1A each. Features low starting torque (3 mN·m), dynamic resistance ≤10 mΩ, and contact surface smoothness Ra0.02 for low noise and high reliability.

Applications: Robotic arms, drone gimbals, automated sensors, PTZ cameras

Technical Specifications

Electrical Specifications

Parameter	Specification
Design Loop	6
Insulation Resistance	250MΩ/250V/DC
Current	1A
Dielectric Strength	>250VAC/50Hz/60s
Dynamic Resistance Change Value	≤10mΩ

Mechanical Specifications

Parameter	Specification
Rated Speed	0-3000 rpm
Working Life	≥100h (Storage life: ≥12 years)
Operating Temperature	-45℃ to 60℃
Contact Material	Gold-gold
Shell Material	Stainless steel + aluminum alloy
Maximum Starting Torque	3m N.m
Weight	<30g (not including wire)
IP Grade	IP51

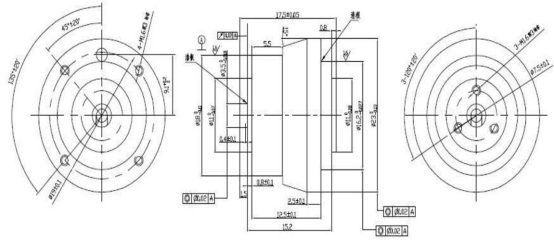

Outline Drawing

Mini Electric Slip Ring 6 Channels High Speed Capsule Slip Ring

Technical Advantages

Friction Pair Technology: Gold metal contact technology ensures ultra-long service life
Integrated Casting Process: Concentricity between ring groove and bearing ≤ 0.01mm
Mirror Processing Technology: Contact surface smoothness Ra0.02 for reliable performance
Precision Component Manufacturing: Dimensional tolerance <0.01mm, axial displacement <0.01mm
Advanced Brush Wire Modulation: Near-zero pressure brush design extends slip ring life by 1/3
High Speed Capability: Maximum speed of 8000 revolutions per minute (with cooling system)
Extended Lifespan: Maximum lifespan up to 100 million revolutions
